Condition:
New
Spindle Taper:
BT40
No. of Spindles:
Single
Type:
VERTICAL
Dimension(L*W*H):
2650*2370*2300
Weight (T):
5.1 T
Table Size (mm):
1000x550
CNC Control System:
FANUC, MITSUBISHI, Siemens
Number of Axes:
3, 4, 5
Table Travel (X) (mm):
820
Table Travel (Y) (mm):
550
Table Travel (Z) (mm):
600
Positioning Accuracy (mm):
±0.008
Repeatability (X/Y/Z) (mm):
±0.008
Range of Spindle Speed(r.p.m):
1 - 12000 r.p.m
Spindle Motor Power(kW):
7.5/11
Max. Table Load(kg):
600 kg
Feed Speed(mm/min):
1 - 20000 mm/min
Rapid Feed Speed(m/min):
48
Min. Time of Tool Change(s):
2
Tool Magazine Capacity:
24
Key Selling Points:
High-accuracy
Warranty:
1 Year
Voltage:
380v
Applicable Industries:
Consumer electronics, automobiles and locomotives, instruments and meters, electronic and electrical appliances, aerospace and machinery manufacturing industries
Showroom Location:
Italy, Viet Nam, Indonesia, Pakistan, Russia, Thailand, Uzbekistan, Japan, Malaysia
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Other
Product name:

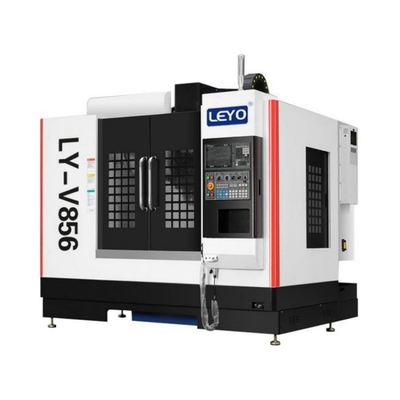

5 Axis CNC Milling Machine
Machine Type:
CNC Vertical Machining Center
Name:
Vertical Machine Center CNC Machine
Function:
Machining Metal
Keywords:
Vmc Machine Center
Application:
Metal Machining
CNC or Not:
CNC Systemn
Key word:
CNC Machining Center Vertical
Machine Name:
VMC 850 Vertical Machining Center
Product type:
Cnc Machine
