Caracteristicas

Especificaciones

Condition: New

Type: Panel Saw, Table Panel Saw

Use: Woodworking

Style: VERTICAL

Usage: Cutting Wood

Voltage: 220V/380V

Dimension(L*W*H): 3250*3150*900mm

Warranty: 1 Year

Application: factory

Weight (KG): 1800 KG

Key Selling Points: Easy to Operate

Max.Cutting Height at 90Â°(mm): 90mm

Max.Cutting Height at 45Â°(mm): 60mm

Max. Length of Workpiece (mm): 2900mm

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Bevera

Marketing Type: Other

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor

Keyword: Wood Cutting Sliding Table Saw Machine

Application Wood: Plywood Boards

Tilting saw blade: 45 degree

Saw blade diameter: 250-300mm

Advantage: High Effeciency

Max cutting length: 2800(3000m/3200m Optional)

Name: Bandsaw Sawmill

Gross cut width: 1250mm

Main spindle diameter: 30mm

Información básica

Pago y Envío Términos

Packaging Details: Standard plywood package for China sliding table panel saw machine for pvc mdf abs board

Supply Ability: 500 Set/Sets per Week Table panel saw

Descripción de producto

Sliding Table Saw

Model

Description

1. Model : APEX-6016

Dimension of sliding table : 1600mmx375mmm

Gross cut capacity :1600mm

Max saw cutting width : 250~315mm

Saw blade diameter: 80mm

Max cutting thickness: 55mm

Main saw spindle rotary speed: 6000rpm

Main spindle diameter: 30mm

Tilting of saw blade : 0-90 degree

Main motor : 5.5kw

Scoring motor: 0.75kw

Package weight : 650kg

Package size : 2.5CBM

2. Model: APEX-6116

Dimension of sliding table : 1600mmx375mmm

Gross cut capacity :1600mm

Max saw cutting width : 250~315mm

Saw blade diameter: 80mm

Max cutting thickness: 55mm

Main saw spindle rotary speed: 6000rpm

Main spindle diameter: 30mm

Tilting of saw blade : 0-45 degree

Main motor : 5.5kw

Scoring motor: 0.75kw

Package weight : 650kg

Package size : 2.5CBM

3. Model: APEX-6026

Dimension of sliding table : 2600mmx375mmm

Gross cut capacity :2600mm

Max saw cutting width : 250~315mm

Saw blade diameter: 80mm

Max cutting thickness: 55mm

Main saw spindle rotary speed: 6000rpm

Main spindle diameter: 30mm

Tilting of saw blade : 0-90 degree

Main motor : 5.5kw

Scoring motor: 0.75kw

Package weight : 700kg

Package size : 2.8CBM

4. Model: APEX-6126

Dimension of sliding table : 2600mmx375mmm

Gross cut capacity :2600mm

Max saw cutting width : 250~315mm

Saw blade diameter: 80mm

Max cutting thickness: 55mm

Main saw spindle rotary speed: 6000rpm

Main spindle diameter: 30mm

Tilting of saw blade : 0-45 degree

Main motor : 5.5kw

Scoring motor: 0.75kw

Package weight : 700kg

Package size : 2.8CBM

5. Model: APEX-6028

Dimension of sliding table : 2800mmx375mmm

Gross cut capacity :2800mm

Max saw cutting width : 250~315mm

Saw blade diameter: 80mm

Max cutting thickness: 55mm

Main saw spindle rotary speed: 6000rpm

Main spindle diameter: 30mm

Tilting of saw blade : 0-90 degree

Main motor : 5.5kw

Scoring motor: 0.75kw

Package weight : 700kg

Package size : 2.8CBM

6. Model: APEX-6128

Dimension of sliding table : 2800mmx375mmm

Gross cut capacity :2800mm

Max saw cutting width : 250~315mm

Saw blade diameter: 80mm

Max cutting thickness: 55mm

Main saw spindle rotary speed: 6000rpm

Main spindle diameter: 30mm

Tilting of saw blade : 0-45 degree

Main motor : 5.5kw

Scoring motor: 0.75kw

Package weight : 700kg

Package size : 2.8CBM

7. Model: APEX-6030

Dimension of sliding table : 3000mmx375mmm

Gross cut capacity :3000mm

Max saw cutting width : 250~315mm

Saw blade diameter: 80mm

Max cutting thickness: 55mm

Main saw spindle rotary speed: 6000rpm

Main spindle diameter: 30mm

Tilting of saw blade : 0-90 degree

Main motor : 5.5kw

Scoring motor: 0.75kw

Package weight : 700kg

Package size : 2.8CBM

8. Model: APEX-6130

Dimension of sliding table : 3000mmx375mmm

Gross cut capacity :3000mm

Max saw cutting width : 250~315mm

Saw blade diameter: 80mm

Max cutting thickness: 55mm

Main saw spindle rotary speed: 6000rpm

Main spindle diameter: 30mm

Tilting of saw blade : 0-45 degree

Main motor : 5.5kw

Scoring motor: 0.75kw

Package weight : 700kg

Package size : 2.8CBM

9. Model: APEX-6032

Dimension of sliding table : 3200mmx375mmm

Gross cut capacity :3200mm

Max saw cutting width : 250~315mm

Saw blade diameter: 80mm

Max cutting thickness: 55mm

Main saw spindle rotary speed: 6000rpm

Main spindle diameter: 30mm

Tilting of saw blade : 0-90 degree

Main motor : 5.5kw

Scoring motor: 0.75kw

Package weight : 700kg

Package size : 2.8CBM

10. Model: APEX-6132

Dimension of sliding table : 3200mmx375mmm

Gross cut capacity :3200mm

Max saw cutting width : 250~315mm

Saw blade diameter: 80mm

Max cutting thickness: 55mm

Main saw spindle rotary speed: 6000rpm

Main spindle diameter: 30mm

Tilting of saw blade : 0-45 degree

Main motor : 5.5kw

Scoring motor: 0.75kw

Package weight : 700kg

Package size : 2.8CBM

Product Description

Sliding table saw application :

1. It is used for cutting density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

2. It adopts plating chromium steel balls structure for the movable table , It can keep cutting precision and the frame is durable which can last for more than 5 years

3. Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.

4. With oxidation treatment, movable table surface is beautiful and hardwearing.

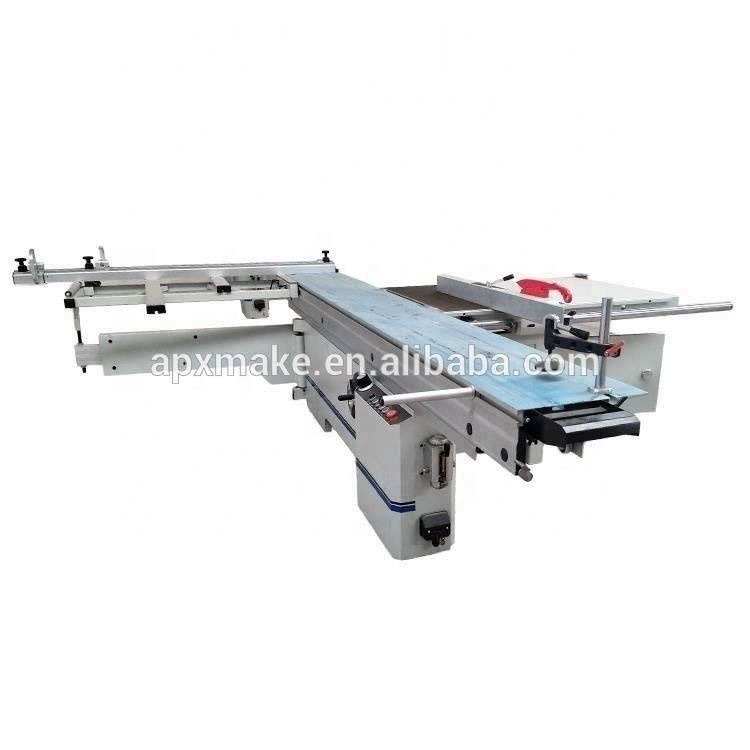

Sliding table saw Photos :

Sliding table saw Features :

1. Our machine has exact cut and widely use in workworking industry
2. The Saw blades can be raised up and down
3. Robust construction ensures long life serving
4. It has strick worker protection system
5. Compact size with firm structure
6. Ergonomically designed to reduce operator's fatigue
7. We get SO9001 and CE certificate
8. We offer Good after-sale service , Our engineers can offer online service as well as oversea service

Sliding table saw Accessories

45 degree angle wheel	Motor Component : 1. 5.5kw Main motor 2. 1.1kw Vice motor 3. Electric lifting motor

Dust cover	Slide rail type: Round stick rail, Ball bearing rail.

Baffle	Big angle ruler

Supported feeding fram	Double saw blades

Sliding table saw Adjust and Install

After the machine positioning, adjust the fixed table, move the table and the bed; Adjust the height of the connection to adjust the height of the saw blade, does not exceed the maximum lift (4mm), adjust the belt, adjust the belt accordingly, adjust the device Small saw motor seat board, adjust tight.

The above indicators, We have adjusted in factory , so users only need to test the indicators. If any error, please adjust the professionals, after adjusting the general do not need to adjust

More Products

ATC cnc router

Advertising cnc engraving machine

Cnc router with rotary axis

Fiber laser cutting machine

Oscilating knife cutter

Plasma cutting machine

4 axis cnc router

Double spindles wood router

Cnc wood lathe

Company Profile

Jinan Apex Machinery Equipment Co., Ltd. is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines have passed the EU CE certificate.

APEX CNC has 10 modern production and processing workshops, including the R&D workshop which can do special design for clients, 6 assembly workshops, 2 riveting and welding workshops, 2 machine processing workshops, more than 600 employees. Our machines are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business. Welcome to cooperate and to be our big sales agent.

APEX CNC products are CNC router, 5 axes machining center, 4 axis machining center, ATC CNC router, General 3 axis CNC router, CNC wood lathe, mold CNC milling machine, CO2 laser engraving cutting machine, and plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countries, Europe, American, Africa, Canada, England, and so on.

The aim of Jinan Apex CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after-sale service.

We are looking for reliable and excellent distributors all over the world. In addition to high-quality products and good after-sales service, we will also provide you with competitive prices, cooperate with your advertising, and provide a variety of advertising materials, text, pictures, and videos. For engraving and cutting a variety of different materials, we can provide professional design schemes and even drawings. Jinan Apex Machinery Equipment Co., Ltd, We sincerely look forward to your cooperation and joining.

Product Process

Product exhibition

Delivery & Payment

FAQ

1. How can i make sure that this machine is suitable for my work?

A: You can describe what you will use this machine to do , such as your working materials, max working area and cutting thickness, We will give you right machine for your work

2. Are you factory or trading company?

We are factory and we have Import and export rights, There are many clients coming here to visit our factory every year ,

You are welcomed to come to our factory at any time

3. It is my first time to use this machine , is it easy to operate?

We have manual book and operation video, it can teach you how to use it .

If there is still have any question, we can teach you online

If there is a need , Our engineer can go abroad to help you

4. What can i do if the machine have any problems after i get it?

Free parts will be sent to you during warranty period

Free after-sales service will be given in the machine lifetime, we offer you 24hours online service

5.What is your MOQ ( minimum order quantity ) ?

Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you.
