Condition:
New
Spindle Taper:
BT40
No. of Spindles:
Twin
Type:
VERTICAL
Dimension(L*W*H):
2500*2000*2450mm
Weight (T):
3 T
Table Size (mm):
800x400mm
CNC Control System:
GSK, FANUC, MITSUBISHI, KND, Siemens
Number of Axes:
3, 4, 5
Table Travel (X) (mm):
600 mm
Table Travel (Y) (mm):
360 mm
Table Travel (Z) (mm):
450 mm
Positioning Accuracy (mm):
0.01
Repeatability (X/Y/Z) (mm):
0.004
Range of Spindle Speed(r.p.m):
20 - 8000 r.p.m
Spindle Motor Power(kW):
5.5
Max. Table Load(kg):
300 kg
Feed Speed(mm/min):
1 - 1000 mm/min
Rapid Feed Speed(m/min):
20/20/15
Min. Time of Tool Change(s):
2
Tool Magazine Capacity:
16
Key Selling Points:
Automatic
Warranty:
2 years
Voltage:
380V 240V
Applicable Industries:
Hotels, Machinery Repair Shops, Manufacturing Plant
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Marketing Type:
New Product 2021
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Bearing
X/Y/Z axis servo motor torque:
10/10/15N.M
Automatic tools changer:
16 Armless type(optional:24 arm
Tool length:
250/350mm
Tool diameter:
100(Adjacent)/150(Apart)
Cutting feed speed:
10m/min
Machine Type:

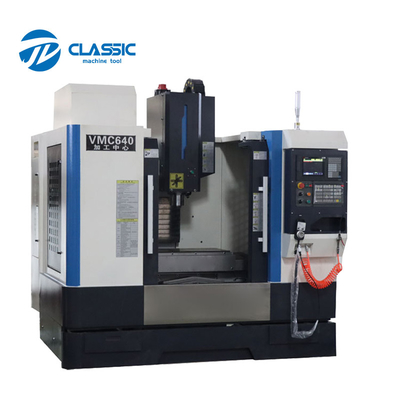

CNC Vertical Machining Center
Product name:
3-axis Vertical Cnc Machining Center
Application:
Metal Machining
Product type:
Cnc 3 Axis Machine
Controlling Mode:
Fanuc Mitsubishi Siemens Gsk System
